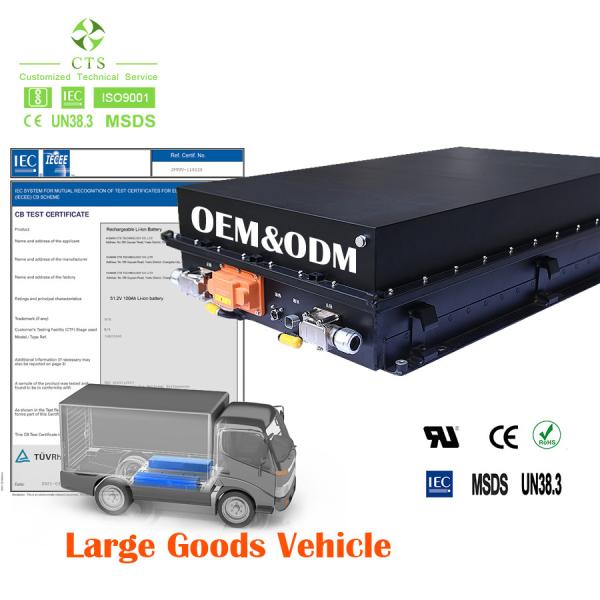

614V lithium ion battery for elctric trucks 614v 60kwh 120kwh 200kwh ev battery pack for E-bus

Brand Name : CTS

Model Number : EV battery module

Certification : UN38.3

Place of Origin : Hunan,China

MOQ : 2 units

Price : 6500~12000

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 untis per month

Delivery Time : 15-20 working days

Packaging Details : Polywood case

Battery type : 614v lifepo4 ev battery pack

Nominal Capacity : 100ah 200ah

Cell : A+ Cell

Warranty : 3 years

Cycle life : About 4000 Times

Contact Now

614V lithium ion battery for elctric trucks 614v 60kwh 120kwh 200kwh ev battery pack for E-bus


Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle, large capacity AGV, Skyline crane.

We have 5 star ★★★★★ experience in different market. lf you have any question,please contact us, we will provide the proper solution for you!

614V lithium ion battery for elctric trucks 614v 60kwh 120kwh 200kwh ev battery pack for E-bus

Standard EV Battery Module for Bus and Heavy Truck Support Max 600KWH System

✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life. ✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.

What is an EV battery module?


EV module and pack systems are assembled by both OEMs as well as automotive makers. A module is composed of a few cells welded or otherwise physically attached to each other. Multiple battery cells are assembled into a module, wrapped in steel plates, and have their poles welded together to produce the correct voltage.
How big is a standard EV battery module?

4 stars and above:

MODEL	F128206	F128230	F153206	F153230
ELECTRICAL SPECIFICATIONS
Cell Type -Chemistry	3.2V 206ah	3.2V 230ah	3.2V 206ah	3.2V 230ah
Rated Voltage	128V	128V	153.6V	153.6V
Energy	26.386kWh	29.44kWh	31.16kWh	35.328kWh
IP Protection	IP67
Cycle life	>3000cycles(90%DOD, 0.5C)

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults

Electric vehicle lithium-ion battery - CTS battery

Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!

614V lithium ion battery for elctric trucks 614v 60kwh 120kwh 200kwh ev battery pack for E-bus

614V lithium ion battery for elctric trucks 614v 60kwh 120kwh 200kwh ev battery pack for E-bus Images
