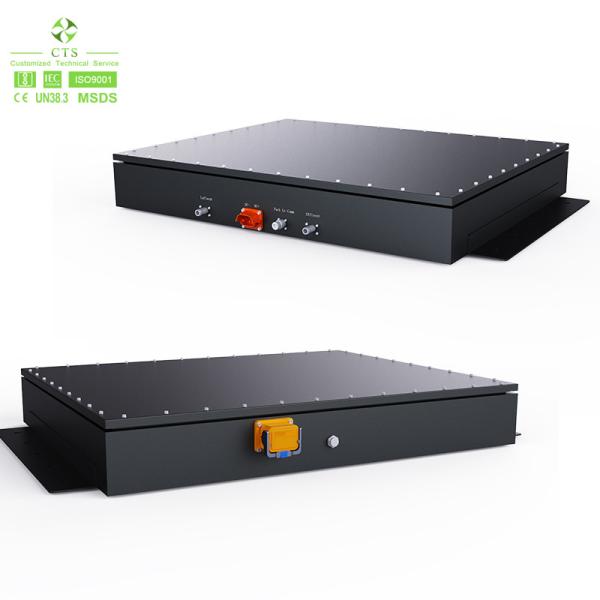

IP67 HV Battery Pack 330V 100Ah Lithium ion NMC EV Battery 330V 30kwh

Product Categories

Hunan CTS Technology Co,.ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

IP67 HV Battery Pack 330V 100Ah Lithium ion NMC EV Battery 330V 30kwh

Brand Name : CTS

Model Number : 330100

Certification : CE/US38.3/MSDS

Place of Origin : Changsha, China

MOQ : 2

Price : USD 4000~8000/PC

Payment Terms : L/C, T/T, Western Union, Alipay

Supply Ability : 1000 PCs per month

Delivery Time : 28~35 days

Packaging Details : Wooden case with foam

Voltage : 328.5V

Capacity : 100Ah

Energy : 32.8KWH

Chemical : NMC

Warranty : 2 years

Communication : CAN or RS485

BMS : Integrated

Protection Level : IP67 metal plate by default

Size : Flexible, according to your requests

Lifepan : 2000 times

OEM/ODM : Available

Liquid cooling and heating : Available

Tech Support : Available, engineering team stand by 24*7

Maximum Capacity : Customized on requests

Contact Now

IP67 Protection Electric Car Battery, 330V 100Ah Lithium ion NMC EV Battery, 330V 30kwh NMC Electric Bus Battery

IP67 HV Battery Pack 330V 100Ah Lithium ion NMC EV Battery 330V 30kwh

Specification

Parameters of 330v 228Ah NMC battery pack
No.	Items	Technical requirement	Note
1	Battery Type	NMC	3.65V 50Ah
2	Capacity	100Ah	@25°C
3	Volatge	328V
4	Power	32.8KWH
5	Weight	270KG
6	Working Voltage range	270~378VDC
7	Continuous discharge current	100	@EOL , @25'C
8	Peak discharge current	300A	For 10 seconds
9	standard charge current	100
10	Max charge current	200A
11	Dimension (L/W/H)	1361975170mm

Dimensions

IP67 HV Battery Pack 330V 100Ah Lithium ion NMC EV Battery 330V 30kwh

Deatails

Core technologies

>>> Thermal Management and Simulation Design <<<CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.
>>> Test and Verification <<<CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

>>> BMS and Active Balance <<<
CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as  CAN / RS485 communication protocol,
 threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

Product Safety and Related products

  	 			NMC 72V 200Ah Lithium battery

 			Battery Type
 			NMC

 			Capacity
 			200Ah @25°C

 			Voltage
 			72v

 			Weight
 			130.5kg

 			Working voltage
 			60v - 84v

 			Battery power. 14. 4 kWh 			Client Country: Canada, in operation since 2015


  	 			NMC 96V 400Ah Lithium battery

 			Battery Type
 			Lifepo4

 			Capacity
 			400Ah @25°C

 			Voltage
 			96v

 			Weight
 			337kg

 			Working voltage
 			75v-109.5v

 			Battery power: 38.4 kWh
Client Country: New Zealand, In operation since 2020


  	 			NMC 144V 100Ah lithium battery

 			Battery Type
 			NMC

 			Capacity
 			100Ah @25°C

 			Voltage
 			144V

 			Weight
 			130.5kg

 			Working voltage
 			120v - 168v

 			Battery power. 14. 4 kWh
Client Country: Thalaind, In operation since 2020


  	 			Lifepo4 614v 100Ah lithium battery

 			Battery Type
 			Lifepo4

 			Capacity
 			100Ah @25°C

 			Voltage
 			614.4v

 			Weight
 			558kg

 			Working voltage
 			480v - 700.8v

 			Battery power: 61.44 kWh 			Client Country: UK, In operation since 2019



Company Profile
10+ years to sharpen a sword.
 We do only one thing, professional customization.

 20 + R&D team
 150 front-line production employees
 10 production lines
 20,000 square meter plant
 Capacity up to 500mwh
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

 We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
 We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed ISO9001, ISO14001 and OHSAS18001 certifications.

 We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
Product testing and shipping
1. Customized plywood case and foam packaging, safe for different shipment2. 100% full testing before shipment to ensure quality
 3. MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
 4. Customs on-site inspection to ensure the safety of the battery

Our business partner and Customer feedbacks
