72V 96V 114V 330V 400V 537V 614V 50AH 100AH 200AH EV LifePo4 Battery pack for Electrical Car Bus

Brand Name : CTS

Model Number : CTS-400200

Certification : CE

Place of Origin : Hunan,China

MOQ : 10 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 untis per month

Delivery Time : 15-20 working days

Packaging Details : Polywood case

OE NO : ev battery 40kwh

CC : 1C discharge

Battery type : 330V 400V NMC battery

apacity : 50Ah 100Ah

Cell type : Lifepo4 Rechargeable Battery Cell

OEM/ODM : Aceeptable

Contact Now

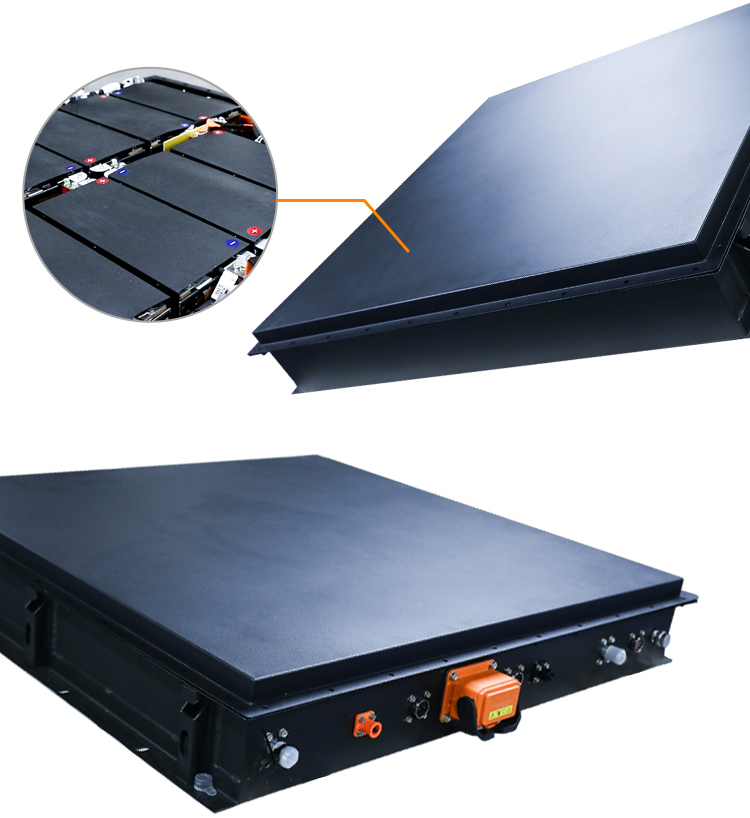

CTS customized 400v 50Ah 100Ah lithium electric car battery

72V 96V 114V 330V 400V 537V 614V 50AH 100AH 200AH EV LifePo4 Battery pack for Electrical Car Bus

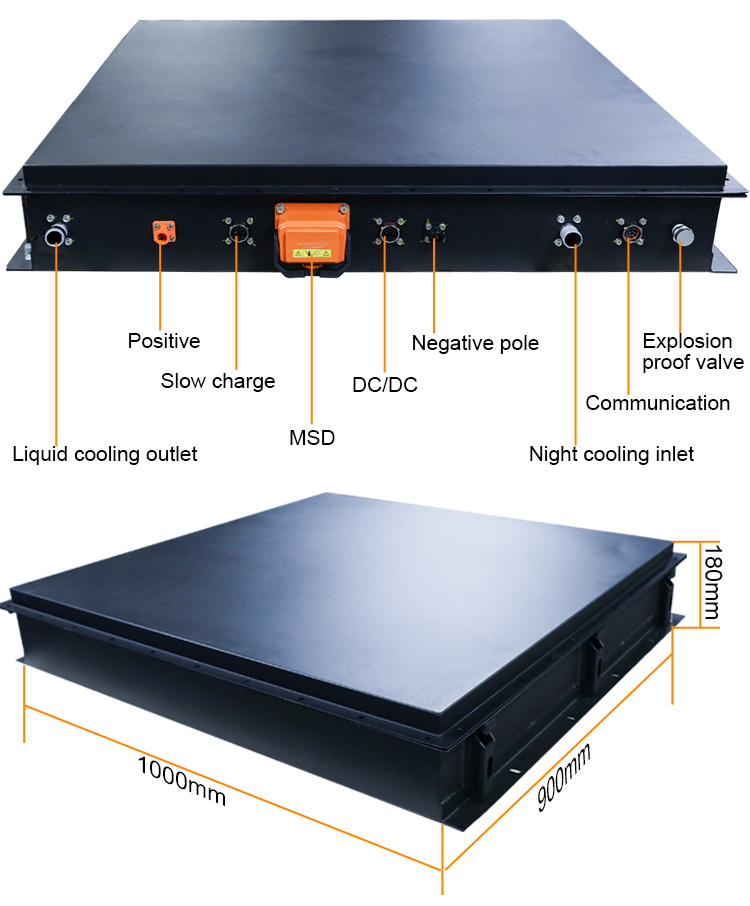

Dimensions

Details

Parameters of 400v 100Ah NMC battery pack
No.	Items	Technical requirement	Note
1	Battery Type	NMC	108S
2	Capacity(Ah)	100	@25℃
3	Volatge	394.2
4	Power(kWh)	39.4
5	Weight(kg)	360
6	Working Voltage range(DC V)	270-453.6
7	Continuous discharge current(A)	100	@EOL,@25℃
8	Peak discharge current(A)	300	For 30 seconds
9	Dimension (L/W/H, mm)	L1000W1800H200mm

Core technologies

>>> Lightweight and scalability <<<

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V  24V  48V  72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management and Simulation Design <<<

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

>>> Test and Verification <<<

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

Product Safety

Related products

NMC 72V 200Ah Lithium battery
Battery Type	NMC
Capacity	200Ah @25℃
Voltage	72v
Weight	130.5kg
Working voltage	60v - 84v
Battery power: 14.4 kWh Client Country: Canada, in operation since 2015

Lifepo4 96V 400Ah Lithium battery
Battery Type	Lifepo4
Cpacity	400Ah @25℃
Voltage	96v
Weight	337kg
Working voltage	75-109.5
Battery power: 38.4 kWh Client Country: New Zealand, In operation since 2020

NMC 144V 100Ah lithium battery
Battery Type	NMC
Capacity	100Ah @25℃
Voltage	144v
Weight	130.5kg
Working Voltage	120v - 168v
Battery power: 14.4 kWh Client Country: Thalaind, In operation since 2020

Lifepo4 614v 100Ah lithium battery
Battery Type	Lifepo4
Capacity	100Ah @25℃
Voltage	614.4v
Weight	558kg
Working Voltage	480v - 700.8v
Battery power: 61.44 kWh Client Country: UK, In operation since 2019

Application field

System Stability, high and low temperature resistance, long life, high cost performance,high safty, ultra-wide application range.

Company Profile

10+ years to sharpen a sword.
 We do only one thing, professional customization.

 20 + R&D team
 150 front-line production employees
 10 production lines
 20,000 square meter plant
 Capacity up to 500mwh

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
 We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

 We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.

Product testing and shipping

Customized plywood case and foam packaging, safe for different shipment 2. 100% full testing before shipment to ensure quality
MSDS and UN38.3 certifications to ensure customs declaration and clearance during transportation
Customs on-site inspection to ensure the safety of the battery
